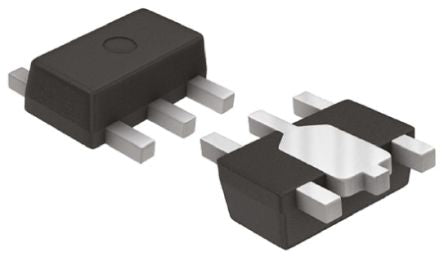

ON Semiconductor NCP694H12HT1G, LDO Regulator, 1A, 1.2 V 5-Pin, SOT-89 [NCP694H12HT1G]; 163-2641
0₫
Mã kho: 1632641
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 1.2 V |
| Output Type | Fixed |
| Package Type | SOT-89 |
| Maximum Output Current | 1A |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 1.4 V |
| Maximum Input Voltage | 6 V |
| Pin Count | 5 |
| Polarity | Positive |
| Number of Outputs | 1 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Height | 1.6mm |
| Reference Voltage | 1V |
| Load Regulation | 15 mV |
| Dimensions | 4.6 x 2.6 x 1.6mm |
| Length | 4.6mm |
| Width | 2.6mm |
| Line Regulation | 0.2 %/V |
