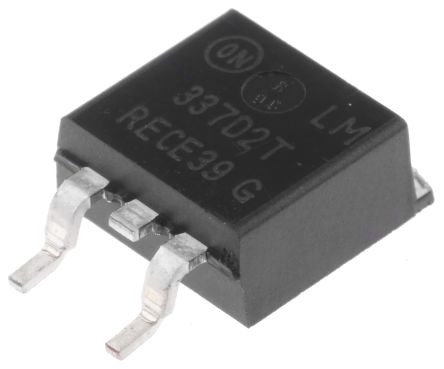

ON Semiconductor LM337D2TG Negative Voltage Regulator, 1.5A, Adjustable, -37 → -1.2 V 3-Pin, D2PAK [LM337D2TG]; 145-3280
0₫
Mã kho: 1453280
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | -37 → -1.2 V |
| Maximum Output Current | 1.5A |
| Package Type | D2PAK |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Maximum Input Voltage | -40 V |
| Pin Count | 3 |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +125 °C |
| Number of Outputs | 1 |
| Polarity | Negative |
| Length | 10.24mm |
| Dimensions | 10.24 x 9.35 x 4.57mm |
| Reference Voltage | -1.25V |
| Line Regulation | 0.04 %/V |
| Load Regulation | 0.01 |
| Height | 4.57mm |
| Width | 9.35mm |
| Series | LM337 |
