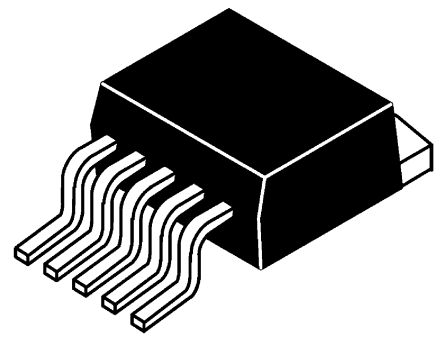

Linear Technology LT1963AEQ-1.8#PBF, Low Noise LDO Voltage Regulator, 1.5A, 1.8 V 6-Pin, D2PAK [LT1963AEQ-1.8#PBF]; 153-3309
0₫
Mã kho: 1533309
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Output Voltage | 1.8 V |
Output Type | Fixed |
Package Type | D2PAK |
Maximum Output Current | 1.5A |
Mounting Type | Surface Mount |
Minimum Input Voltage | 1.9 V |
Maximum Input Voltage | 20 V |
Pin Count | 6 |
Polarity | Positive |
Number of Outputs | 1 |
Quiescent Current | 1mA |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +125 °C |
Line Regulation | 7 mV |
Length | 10.54mm |
Load Regulation | 10 mV |
Height | 4.57mm |
Dimensions | 10.54 x 9.4 x 4.57mm |
Enable | Yes |
Width | 9.4mm |
