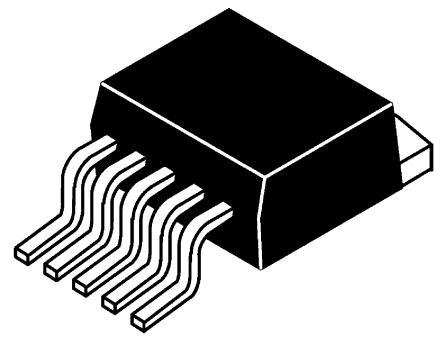

Linear Technology LT1764AEQ-2.5#PBF, Low Noise LDO Voltage Regulator, 3A, 2.5 V, 2.7 → 20 Vin 5-Pin, D2 [LT1764AEQ-2.5#PBF]; 411-873
0₫
Mã kho: 411873
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 2.5 V |
| Output Type | Fixed |
| Package Type | D2 |
| Maximum Output Current | 3A |
| Mounting Type | Through Hole |
| Minimum Input Voltage | 2.7 V |
| Maximum Input Voltage | 20 V |
| Pin Count | 5 |
| Number of Outputs | 1 |
| Polarity | Positive |
| Quiescent Current | 1mA |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Width | 4.572mm |
| Length | 10.54mm |
| Height | 7.874mm |
| Dimensions | 10.541 x 4.572 x 7.874mm |
| Enable | Yes |
| Line Regulation | 10 mV |
| Load Regulation | 30 mV |
| Reference Voltage | 1.21V |
