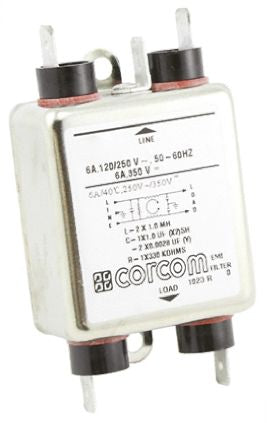

TE Connectivity SB Series 6A 250 V ac 50 → 60Hz Flange Mount RFI Filter, with Spade Terminals, Single Phase [6ESB1]; 782-6701
0₫
Mã kho: 7826701
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 6A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Flange Mount |
| Termination Style | Spade |
| Number of Phases | 1 |
| Number of Stages | Single Stage |
| Series | SB |
| Operating Frequency | 50 → 60Hz |
| Length | 85.34mm |
| Depth | 46.23mm |
| Capacitance | 1.0014 μF, 5.6 nF |
| Height | 23.11mm |
| Inductance | 1 mH |
| Dimensions | 85.34 x 46.23 x 23.11mm |
| Leakage Current | 0.36 mA |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +40°C |
| Standards Met | UL 1283 |
