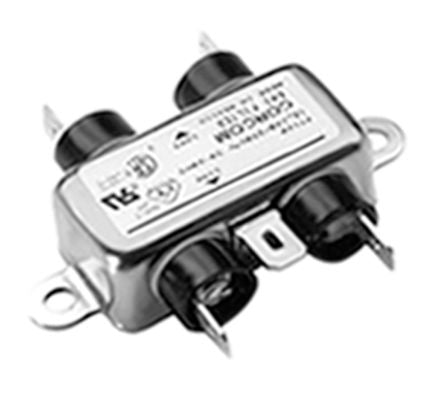

TE Connectivity Corcom B Series 5A 250 V ac 50 Hz, 60 Hz Flange Mount RFI Filter, with Spade Terminals, Single Phase [6609020-7]; 161-5059
0₫
Mã kho: 1615059
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Current Rating | 5A |
Maximum Voltage Rating | 250 V ac |
Mounting Type | Flange Mount |
Termination Style | Spade |
Number of Phases | 1 |
Series | Corcom B |
Operating Frequency | 50 Hz, 60 Hz |
Length | 57.2mm |
Depth | 16.8mm |
Height | 64.3mm |
Dimensions | 57.2 x 16.8 x 64.3mm |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +40°C |
