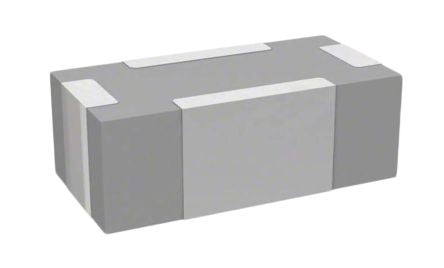

TDK YFF-P Series 4A 10 V dc 0.7 → 1000MHz SMD Feedthrough Capacitor, with Solder Terminals [YFF21PC1A105MT000N]; 144-7398
by TDK
0₫
Mã kho: 1447398
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 4A |
| Maximum Voltage Rating | 10 V dc |
| Mounting Type | Surface Mount |
| Termination Style | Solder |
| Series | YFF-P |
| Operating Frequency | 0.7 → 1000MHz |
| Length | 2mm |
| Depth | 1.25mm |
| Capacitance | 1µF |
| Height | 0.85mm |
| Dimensions | 2 x 1.25 x 0.85mm |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +85°C |
