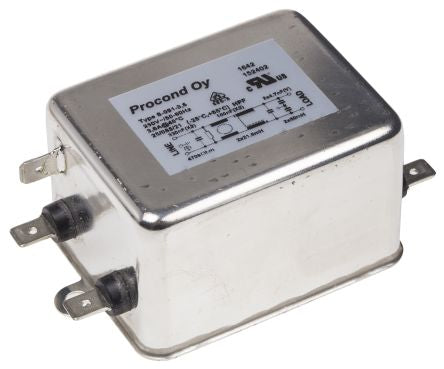

RS PRO S091A Series 3.6A 250 V ac 400MHz Flange Mount RFI Filter, with Tab Terminals; 240-703
by RS PRO
0₫
Mã kho: 240703
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 3.6A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Flange Mount |
| Termination Style | Tab |
| Number of Stages | Two Stage |
| Series | S091A |
| Operating Frequency | 400MHz |
| Length | 65mm |
| Depth | 52mm |
| Height | 40mm |
| Capacitance | 100 nF, 330 nF |
| Inductance | 21 x 2 mH |
| Dimensions | 65 x 52 x 40mm |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 0.45mA mA |
| Maximum Operating Temperature | +85°C |
| Resistance | 470kΩ |
