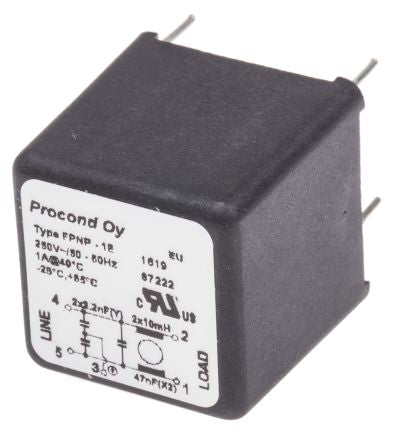

RS PRO FPNP Series 1A 250 V ac 400Hz Through Hole RFI Filter, with Pin Terminals; 239-911
by RS PRO
0₫
Mã kho: 239911
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 1A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Through Hole |
| Termination Style | Pin |
| Series | FPNP |
| Operating Frequency | 400Hz |
| Length | 25mm |
| Depth | 25mm |
| Height | 25mm |
| Capacitance | 47 nF, 2200 x 2 pF |
| Inductance | 10 x 2 mH |
| Dimensions | 25 x 25 x 25mm |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 0.2 mA |
| Maximum Operating Temperature | +85°C |
