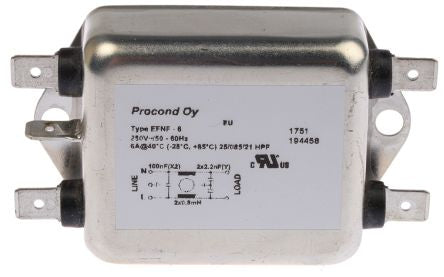

RS PRO EFNF Series 6A 250 V ac 400Hz Chassis Mount RFI Filter, with Tab Terminals; 210-465
by RS PRO
0₫
Mã kho: 210465
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 6A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Tab |
| Number of Stages | Single Stage |
| Series | EFNF |
| Operating Frequency | 400Hz |
| Length | 46mm |
| Depth | 75mm |
| Capacitance | 0.1 x 2 μF, 2200 x 2 pF |
| Height | 19mm |
| Dimensions | 46 x 75 x 19mm |
| Inductance | 2 x 0.9 mH |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 0.2 mA |
| Maximum Operating Temperature | +85°C |
