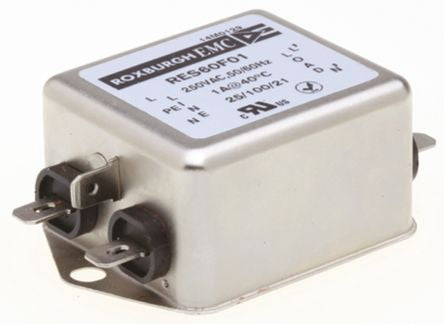

Roxburgh EMC RES60 Series 1A 250 V ac DC → 400Hz Chassis Mount RFI Filter, with Fast-On Terminals, Single Phase [RES60F01]; 806-8170
by Roxburgh EMC
0₫
Mã kho: 8068170
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 1A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Fast-On |
| Number of Phases | 1 |
| Series | RES60 |
| Number of Stages | Multi Stage |
| Operating Frequency | DC → 400Hz |
| Length | 71mm |
| Depth | 45mm |
| Height | 29mm |
| Capacitance | 9.4 nF, 440 nF |
| Inductance | 24 mH |
| Dimensions | 71 x 45 x 29mm |
| Leakage Current | 0.74 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Resistance | 1MΩ |
| Standards Met | CSA 22.2 No. 8, UL 1283 |
