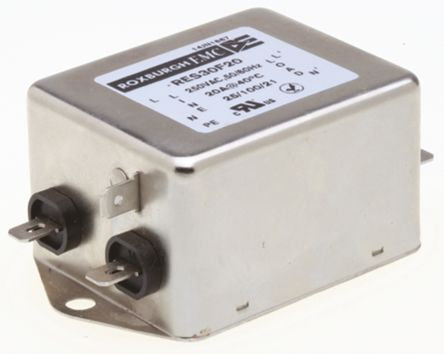

Roxburgh EMC RES30 Series 20A 250 V ac DC → 400Hz Chassis Mount RFI Filter, with Fast-On Terminals, Single Phase [RES30F20]; 806-8177
by Roxburgh EMC
0₫
Mã kho: 8068177
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 20A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Fast-On |
| Number of Phases | 1 |
| Series | RES30 |
| Operating Frequency | DC → 400Hz |
| Length | 85mm |
| Depth | 52mm |
| Capacitance | 20 μF, 330 nF |
| Height | 38mm |
| Inductance | 4 mH |
| Dimensions | 85 x 52 x 38mm |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 0.87 mA |
| Maximum Operating Temperature | +85°C |
| Resistance | 330kΩ |
| Standards Met | CSA 22.2 No. 8, UL 1283 |
