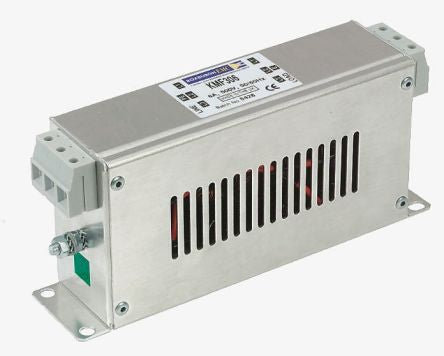

Roxburgh EMC KMF Series 10A 500 V ac 60Hz Flange Mount RFI Filter, with Stud Terminals [KMF310]; 315-1246
by Roxburgh EMC
0₫
Mã kho: 3151246
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 10A |
| Maximum Voltage Rating | 500 V ac |
| Mounting Type | Flange Mount |
| Termination Style | Stud |
| Series | KMF |
| Operating Frequency | 60Hz |
| Length | 179mm |
| Depth | 45mm |
| Capacitance | 1µF |
| Height | 79mm |
| Inductance | 2.8 mH |
| Dimensions | 179 x 45 x 79mm |
| Leakage Current | 3.4 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Resistance | 14mΩ |
| Power Loss | 1.4W |
| Standards Met | UL 1283 |
