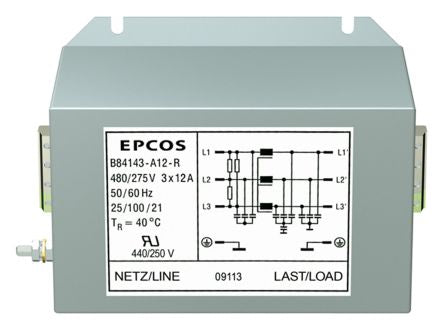

EPCOS B84143A*R000 Series 25A 440 V ac 50 → 60Hz Flange Mount RFI Filter, with Screw Terminals 3 Phase [B84143A0025R000]; 213-8141
by EPCOS
0₫
Mã kho: 2138141
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 25A |
| Maximum Voltage Rating | 440 V ac |
| Mounting Type | Flange Mount |
| Termination Style | Screw |
| Number of Phases | 3 |
| Series | B84143A*R000 |
| Operating Frequency | 50 → 60Hz |
| Length | 156mm |
| Depth | 216mm |
| Height | 91mm |
| Dimensions | 156 x 216 x 91mm |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 0.418 mA |
| Maximum Operating Temperature | +100°C |
| Resistance | 8mΩ |
| Standards Met | CSA 22.2 No. 8, UL 1283 |
