![EPCOS B84113H0000B060 1670389](http://nguyenxuong.com/cdn/shop/products/R1670389-01_444x315.jpg?v=1594400010)

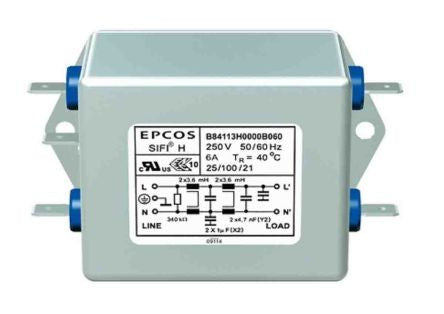

EPCOS B84113H Series 6A 250 V ac/dc 50 → 60Hz Chassis Mount RFI Filter, with Tab Terminals, Single Phase [B84113H0000B060]; 167-0389
by EPCOS
0₫
Mã kho: 1670389
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Current Rating | 6A |
Maximum Voltage Rating | 250 V ac/dc |
Mounting Type | Chassis Mount |
Termination Style | Tab |
Number of Phases | 1 |
Series | B84113H |
Number of Stages | Two Stage |
Operating Frequency | 50 → 60Hz |
Length | 52mm |
Depth | 89.5mm |
Capacitance | 1 x 2 μF, 4700 x 2 pF |
Height | 38mm |
Dimensions | 52 x 89.5 x 38mm |
Inductance | 3.6 x 4 mH |
Leakage Current | 0.369 mA |
Minimum Operating Temperature | -25°C |
Maximum Operating Temperature | +100°C |
