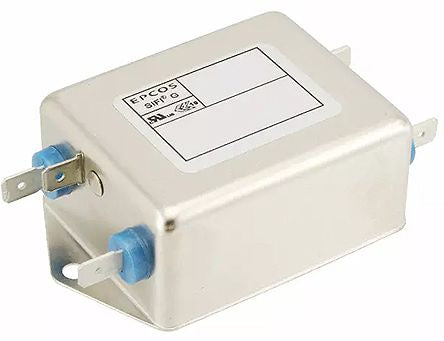

EPCOS B84112G Series 8A 250 V ac/dc 50 → 60Hz Chassis Mount EMC Filter, with Lug, Tab Connector Terminals [B84112G0000M080]; 170-1339
by EPCOS
0₫
Mã kho: 1701339
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Current Rating | 8A |
Maximum Voltage Rating | 250 V ac/dc |
Mounting Type | Chassis Mount |
Termination Style | Lug, Tab Connector |
Number of Phases | 1 |
Series | B84112G |
Number of Stages | Single Stage |
Operating Frequency | 50 → 60Hz |
Length | 63mm |
Depth | 51mm |
Height | 29mm |
Capacitance | 0.47 x 2µF |
Inductance | 2.5 x 2 mH |
Dimensions | 63 x 51 x 29mm |
Minimum Operating Temperature | -25°C |
Leakage Current | 0 mA |
Maximum Operating Temperature | +100°C |
Standards Met | UL 1283 |
