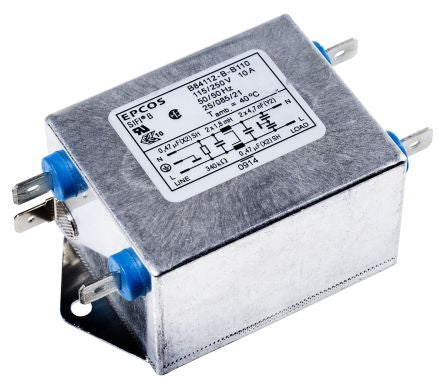

EPCOS B84112B Series 10A 250 V ac 50 → 60Hz Chassis Mount RFI Filter, with Screw Terminals, Single Phase [B84112B0000B110]; 167-8322
by EPCOS
0₫
Mã kho: 1678322
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Current Rating | 10A |
Maximum Voltage Rating | 250 V ac |
Mounting Type | Chassis Mount |
Termination Style | Screw |
Number of Phases | 1 |
Number of Stages | Single Stage |
Series | B84112B |
Operating Frequency | 50 → 60Hz |
Length | 70mm |
Depth | 89.5mm |
Height | 38.1mm |
Capacitance | 0.47 x 2 μF, 4700 x 2 pF |
Inductance | 1.8 x 2 mH |
Dimensions | 70 x 89.5x 38.1 |
Leakage Current | 0.369 mA |
Minimum Operating Temperature | -25°C |
Maximum Operating Temperature | +85°C |
