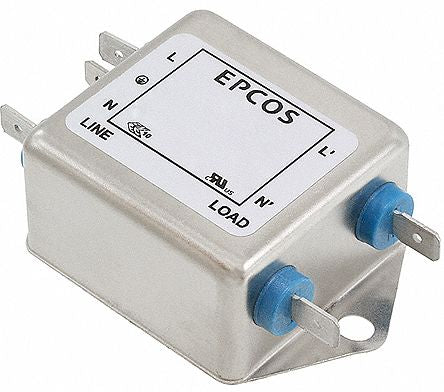

EPCOS B84111F Series 6A 250 V ac/dc 50 → 60Hz Chassis Mount EMC Filter, with Lug, Tab Connector Terminals [B84111F0000M060]; 124-5285
by EPCOS
0₫
Mã kho: 1245285
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Current Rating | 6A |
Maximum Voltage Rating | 250 V ac/dc |
Mounting Type | Chassis Mount |
Termination Style | Lug, Tab Connector |
Number of Phases | 1 |
Series | B84111F |
Number of Stages | Single Stage |
Operating Frequency | 50 → 60Hz |
Length | 35mm |
Depth | 43.5mm |
Capacitance | 0.1 x 2µF |
Height | 26mm |
Inductance | 1.8 x 2 mH |
Dimensions | 35 x 43.5 x 26mm |
Leakage Current | 0 mA |
Minimum Operating Temperature | -25°C |
Maximum Operating Temperature | +100°C |
Standards Met | UL 1283 |
