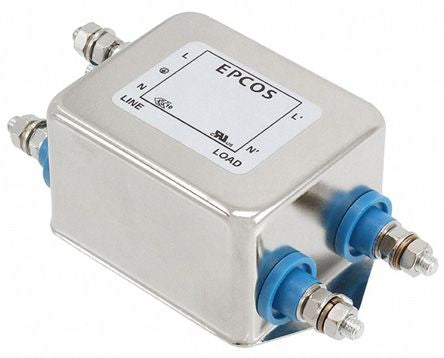

EPCOS B84111F Series 36A 250 V ac/dc 60Hz Flange Mount RFI Filter, with Tab Terminals, Single Phase [B84111F0000G136]; 702-4022
by EPCOS
0₫
Mã kho: 7024022
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 36A |
| Maximum Voltage Rating | 250 V ac/dc |
| Mounting Type | Flange Mount |
| Termination Style | Tab |
| Number of Phases | 1 |
| Series | B84111F |
| Number of Stages | Single Stage |
| Operating Frequency | 60Hz |
| Length | 52mm |
| Depth | 107mm |
| Height | 38mm |
| Capacitance | 0.47 x 2 μF, 10000 x 2 pF |
| Dimensions | 52 x 107 x 38mm |
| Inductance | 0.4 x 2 mH |
| Leakage Current | 0.785 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Standards Met | UL 1283 |
