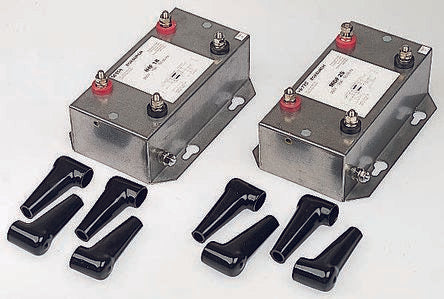

Deltron MDF Series 50A 240 V ac 60Hz Flange Mount EMI Filter, with Stud Terminals, Single Phase [MDF50]; 761-5713
by Deltron
0₫
Mã kho: 7615713
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 50A |
| Maximum Voltage Rating | 240 V ac |
| Mounting Type | Flange Mount |
| Termination Style | Stud |
| Number of Phases | 1 |
| Series | MDF |
| Operating Frequency | 60Hz |
| Length | 174mm |
| Depth | 120mm |
| Height | 55mm |
| Dimensions | 174 x 120 x 55mm |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 110 mA |
| Maximum Operating Temperature | +85°C |
| Resistance | 2mΩ |
| Standards Met | UL 1283 |
| Power Loss | 5W |
