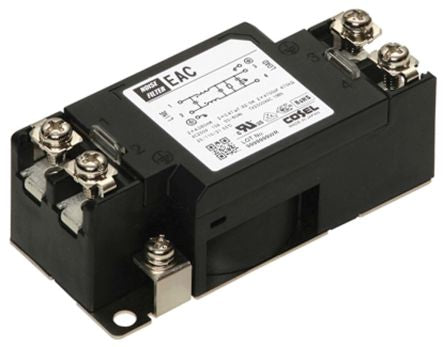

Cosel EAC Series 6A 250 V ac/dc 150 kHz → 1 MHz Panel Mount RFI Filter, with Screw Terminals, Single Phase [EAC-06-472]; 845-6763
by Cosel
0₫
Mã kho: 8456763
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 6A |
| Maximum Voltage Rating | 250 V ac/dc |
| Mounting Type | Panel Mount |
| Termination Style | Screw |
| Number of Phases | 1 |
| Number of Stages | Single Stage |
| Series | EAC |
| Operating Frequency | 150 kHz → 1 MHz |
| Length | 85mm |
| Depth | 39mm |
| Height | 32mm |
| Capacitance | 4.7nF |
| Dimensions | 85 x 39 x 32mm |
| Minimum Operating Temperature | -40°C |
| Leakage Current | 0.5 mA |
| Maximum Operating Temperature | +85°C |
| Resistance | 500MΩ |
