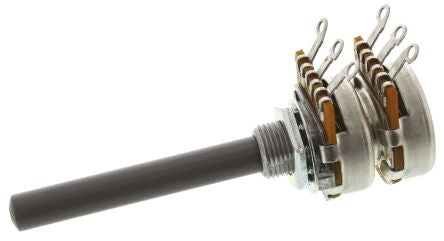

TE Connectivity 2 Gang Rotary Carbon Potentiometer with a 6.35 mm Dia. Shaft, 5kΩ, ±20%, 0.4W, Linear 27ESA502MMF50N [27ESA502MMF50N]; 168-358
0₫
Mã kho: 168358
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Potentiometer Type | Rotary |
| Maximum Resistance | 5 kΩ |
| Number of Gangs | 2 |
| Number of Turns | 1 |
| Power Rating | 0.4W |
| Electrical Taper | Linear |
| Element Material | Carbon |
| Mounting Type | Panel Mount |
| Termination Style | Solder Lug |
| Shaft Length | 50mm |
| Shaft Diameter | 6.35 mm |
| Tolerance | ±20% |
| Actuator Type | Flatted Shaft |
| Series | 27 |
