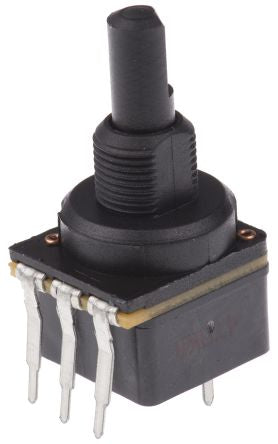

TE Connectivity 1 Gang Rotary Carbon Potentiometer with a 6 mm Dia. Shaft, 470kΩ, ±20%, 0.25W, Linear 17PCSA474MC19P [17PCSA474MC19P]; 161-5162
0₫
Mã kho: 1615162
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Potentiometer Type | Rotary |
Maximum Resistance | 470 kΩ |
Number of Gangs | 1 |
Number of Turns | 1 |
Power Rating | 0.25W |
Electrical Taper | Linear |
Element Material | Carbon |
Mounting Type | Panel Mount |
Termination Style | Pin |
Shaft Length | 19mm |
Shaft Diameter | 6 mm |
Tolerance | ±20% |
Series | 17P |
Actuator Type | Round Shaft |
