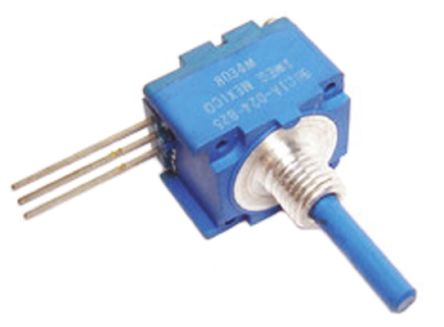

Bourns 1 Gang Rotary Conductive Plastic Potentiometer with a 6.35 mm Dia. Shaft, 50kΩ, ±20%, 0.5W, Linear 91A1A-B28-B18L [91A1A-B28-B18L]; 692-8673
by Bourns
0₫
Mã kho: 6928673
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Potentiometer Type | Rotary |
| Maximum Resistance | 50 kΩ |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power Rating | 0.5W |
| Electrical Taper | Linear |
| Element Material | Conductive Plastic |
| Mounting Type | Panel Mount |
| Termination Style | PC Pin |
| Shaft Length | 22.2mm |
| Shaft Diameter | 6.35 mm |
| Tolerance | ±20% |
| Series | 91 |
| Actuator Type | Slotted Shaft |
