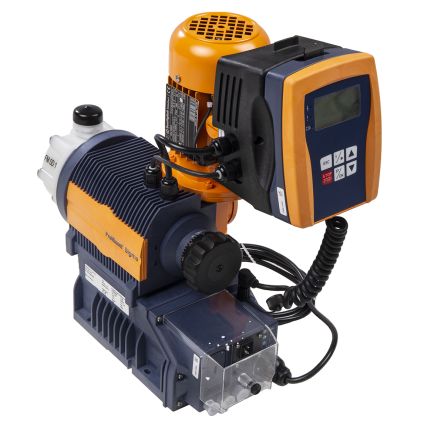

ProMinent Diaphragm Electric Operated Positive Displacement Pump, 120L/h, 4 bar, 100 → 230 V ac [S1CBH04120PVTS070UA110S0EN]; 180-9204
by ProMinent
0₫
Mã kho: 1809204
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Pump Type | Diaphragm |
| Drive Type | Electric |
| Maximum Flow Rate | 120L/h |
| Maximum Working Pressure | 4 bar |
| Input Connection | DN 15 |
| Output Connection | 1 in G |
| IP Rating | IP55, IP65 |
| Series | S1Cb |
| Maximum Fluid Temperature | +100 °C @ 15 min (2 bar) |
| Body Material | PVDF |
| Supply Voltage | 100 → 230 V ac |
| Wetted Materials | PVDF |
| Output Connection Size | 25.4mm |
| Output Thread Standard or Connection Type | G |
| Hazardous Area Certification | ATEX |
