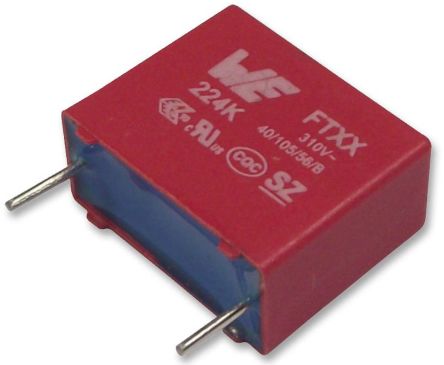

Wurth Elektronik 680nF Polypropylene Capacitor PP 310V ac ±10% Tolerance Through Hole WCAP-FTXX Series [890334027006CS]; 162-1250
0₫
Mã kho: 1621250
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 680 nF |
| Voltage | 310 V ac |
| Mounting Type | Through Hole |
| Tolerance | ±10% |
| Series | WCAP-FTXX |
| Lead Pitch | 27.5mm |
| Suppression Class | X2 |
| Length | 31mm |
| Depth | 10.5mm |
| Height | 20mm |
| Dimensions | 31 x 10.5 x 20mm |
| Lead Length | 4mm |
| Dielectric Material Family | Metallised Polypropylene Film |
| Minimum Operating Temperature | -40°C |
| Dissipation Factor | <0.70 % @ 100 kHz |
| Maximum Operating Temperature | +105°C |
| Terminal Type | Through Hole |
| Lead Diameter | 0.8mm |
