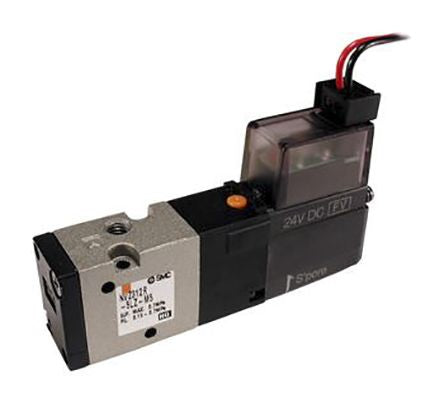

SMC Pneumatic Control Valve Solenoid M5 x 0.8 VZ3000 Series [VZ3120-5MNZ-M5-Q]; 885-2159
by SMC
0₫
Mã kho: 8852159
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Manufacturer Series | VZ3000 |
Mounting Style | Base Mount |
Connection Port Thread | M5 x 0.8 |
Actuation Type | Solenoid |
Body Material | Aluminium Die Cast |
Solenoid Voltage | 24V dc |
Solenoid Power Consumption | 1.8W |
Minimum Operating Pressure | 0.15MPa |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | 50°C |
Configuration | 2-Position Single |
Special Features | Compact Size, Low Power Consumption |
Number of Positions | 2 |
Number of Ports | 5 |
Thread Standard | Metric |
Maximum Operating Pressure | 0.7 MPa |
