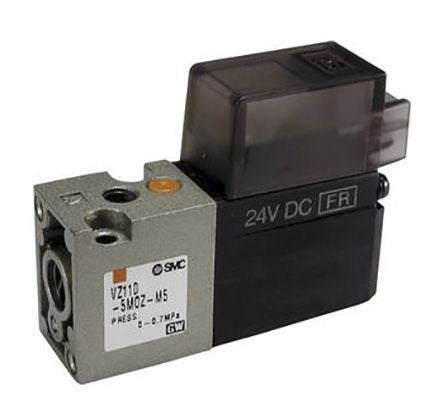

SMC 3/2 Pneumatic Control Valve Spring/Solenoid Metric M5 x 0.8 VZ100 Series [VZ110-5MOZ-M5-Q]; 907-6615
by SMC
0₫
Mã kho: 9076615
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | VZ100 |
| Mounting Style | Body Ported |
| Function | 43892 |
| Connection Port Thread | Metric M5 x 0.8 |
| Actuation Type | Spring/Solenoid |
| Body Material | Die Cast Zinc |
| Solenoid Voltage | 24V dc |
| Solenoid Power Consumption | 0.35W |
| Minimum Operating Temperature | -10 |
| Maximum Operating Temperature | 50°C |
| Thread Standard | Metric |
| Number of Positions | 2 |
| Configuration | Normally Closed |
| Maximum Operating Pressure | 0.7 Mpa |
| Number of Ports | 3 |
