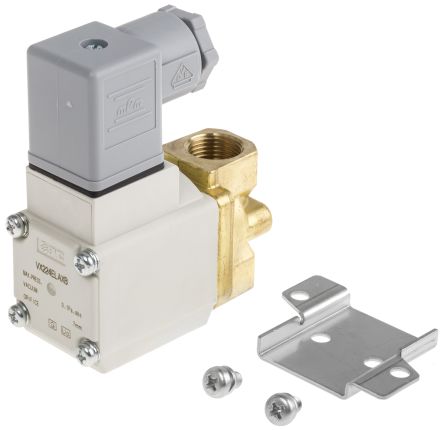

SMC 2/2 Pneumatic Solenoid Valve Solenoid/Spring G 1/4 VX22 Series [VX224ELAXB]; 893-0094
by SMC
0₫
Mã kho: 8930094
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Manufacturer Series | VX22 |
Function | 43863 |
Connection Port Thread | G 1/4 |
Actuation Type | Solenoid/Spring |
Body Material | Brass |
Solenoid Voltage | 230V ac |
Solenoid Power Consumption | 9.5VA |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +60°C |
Configuration | Normally Closed |
Number of Ports | 2 |
Thread Size | 43834 |
Maximum Operating Pressure | 1 MPa |
Number of Positions | 2 |
Special Features | Applicable for Vacuum Use, Low Power Consumption |
Thread Standard | G |
