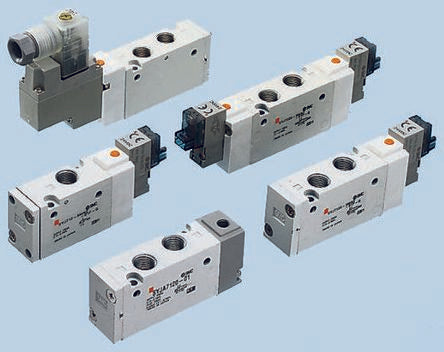

SMC 5/3 Pneumatic Control Valve Pilot/Pilot G 1/8 SYJ7000 Series [SYJ7420-5LOU-01F-Q]; 388-6891
by SMC
0₫
Mã kho: 3886891
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | SYJ7000 |
| Mounting Style | Stand-Alone |
| Function | 43954 |
| Connection Port Thread | G 1/8 |
| Actuation Type | Pilot/Pilot |
| Solenoid Fitted | Yes |
| Body Material | Die Cast Aluminium |
| Maximum Flow Rate | 788L/min |
| Solenoid Voltage | 24V dc |
| Solenoid Power Consumption | 0.4W |
| Minimum Operating Pressure | 0.15MPa |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +50°C |
| Thread Standard | G |
| Maximum Operating Pressure | 0.7 MPa |
| Thread Size | 1/8in |
| Number of Ports | 43954 |
