![SMC SYJ512-5LOU-M5-Q 3881010](http://nguyenxuong.com/cdn/shop/products/F3881010-01_444x329.jpg?v=1593768480)

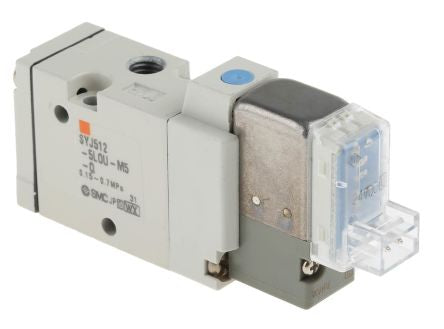

SMC 3/2 Pneumatic Control Valve Solenoid/Pilot Metric M5 SYJ500 Series [SYJ512-5LOU-M5-Q]; 388-1010
by SMC
0₫
Mã kho: 3881010
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Manufacturer Series | SYJ500 |
Mounting Style | Stand-Alone |
Function | 43892 |
Connection Port Thread | Metric M5 |
Actuation Type | Solenoid/Pilot |
Solenoid Fitted | Yes |
Body Material | Die Cast Aluminium |
Maximum Flow Rate | 196.3NL/min |
Solenoid Voltage | 24V dc |
Solenoid Power Consumption | 0.55W |
Minimum Operating Pressure | 0.15MPa |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +50°C |
Number of Ports | 43892 |
Thread Size | M5 |
Thread Standard | Metric |
Maximum Operating Pressure | 0.7 MPa |
