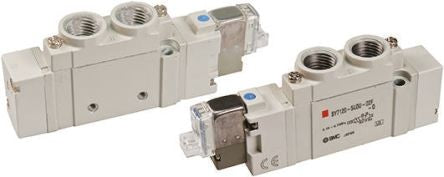

SMC 5/3 Pneumatic Control Valve Pilot/Pilot G 1/4 SY7000 Series [SY7420-5YO-02F-Q]; 701-3154
by SMC
0₫
Mã kho: 7013154
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | SY7000 |
| Mounting Style | Stand-Alone |
| Function | 43954 |
| Connection Port Thread | G 1/4 |
| Actuation Type | Pilot/Pilot |
| Solenoid Fitted | Yes |
| Body Material | Die Cast Aluminium |
| Maximum Flow Rate | 912.8NL/min |
| Solenoid Voltage | 24V dc |
| Solenoid Power Consumption | 0.35W |
| Minimum Operating Pressure | 0.2MPa |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +50°C |
| Thread Size | 1/4in |
| Maximum Operating Pressure | 0.7 MPa |
| Number of Ports | 43954 |
| Thread Standard | G |
