![SMC SY7220-5DZ-02F-Q 1964593](http://nguyenxuong.com/cdn/shop/products/R1964593-01_444x424.jpg?v=1594080175)

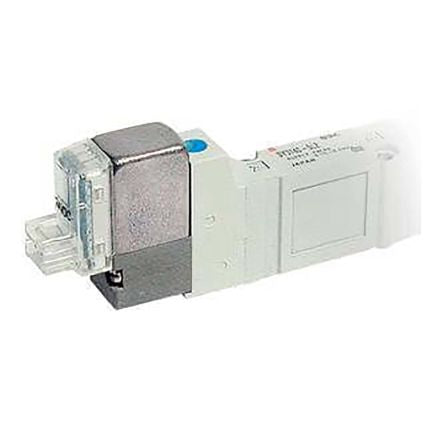

SY7000, 5 Port Solenoid Valve, All Types [SY7220-5DZ-02F-Q]; 196-4593
by SMC
0₫
Mã kho: 1964593
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Manufacturer Series | SY7000 |
Mounting Style | Body Ported |
Function | 43953 |
Connection Port Thread | G 1/4 |
Solenoid Fitted | Yes |
Body Material | Aluminium |
Maximum Flow Rate | 1130L/min |
Solenoid Power Consumption | 0.35W |
Minimum Operating Pressure | 0.1MPa |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +50°C |
Thread Standard | G |
Maximum Operating Pressure | 0.7 MPa |
Thread Size | 1/4in |
Configuration | 43953 |
Number of Positions | 2 |
Number of Ports | 5 |
