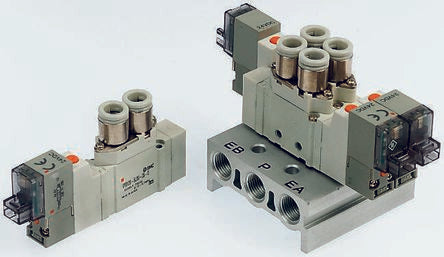

SMC 5/3 Pneumatic Control Valve Pilot/Pilot SY5000 Series [SY5440-5YO-Q]; 701-3117
by SMC
0₫
Mã kho: 7013117
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Manufacturer Series | SY5000 |
Mounting Style | Manifold |
Function | 43954 |
Actuation Type | Pilot/Pilot |
Solenoid Fitted | Yes |
Body Material | Die Cast Aluminium |
Maximum Flow Rate | 687NL/min |
Solenoid Voltage | 24V dc |
Solenoid Power Consumption | 0.35W |
Minimum Operating Pressure | 0.2MPa |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +50°C |
Number of Ports | 43954 |
Thread Standard | Rc |
Maximum Operating Pressure | 0.7 MPa |
