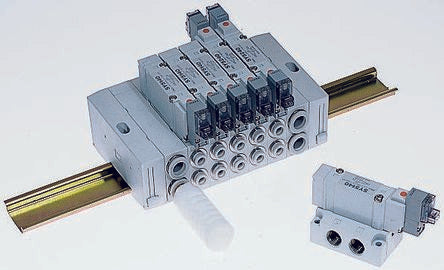

SMC 5/2 Pneumatic Control Valve Solenoid/Pilot SY5000 Series [SY5140-5DO]; 277-4539
by SMC
0₫
Mã kho: 2774539
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | SY5000 |
| Mounting Style | Manifold |
| Function | 43953 |
| Actuation Type | Solenoid/Pilot |
| Solenoid Fitted | Yes |
| Body Material | Die Cast Aluminium |
| Maximum Flow Rate | 687NL/min |
| Solenoid Voltage | 24V dc |
| Solenoid Power Consumption | 0.35W |
| Minimum Operating Pressure | 0.15MPa |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +50°C |
| Maximum Operating Pressure | 0.7 MPa |
| Thread Standard | Rc |
| Number of Ports | 43953 |
