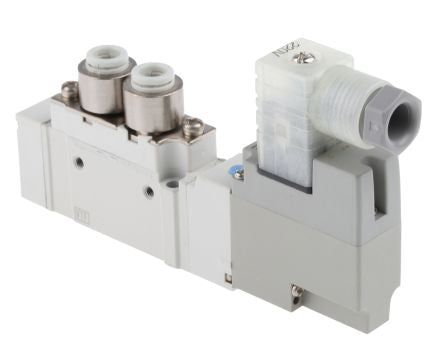

SMC 5/2 Pneumatic Control Valve Solenoid/Pilot SY5000 Series [SY5120-4DZ-C6F-Q]; 712-4847
by SMC
0₫
Mã kho: 7124847
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Manufacturer Series | SY5000 |
Mounting Style | Stand-Alone |
Function | 43953 |
Actuation Type | Solenoid/Pilot |
Solenoid Fitted | Yes |
Body Material | Die Cast Aluminium |
Maximum Flow Rate | 500.5NL/min |
Solenoid Voltage | 230V ac |
Solenoid Power Consumption | 1.6VA |
Minimum Operating Pressure | 0.15MPa |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +50°C |
Maximum Operating Pressure | 0.7 MPa |
Thread Standard | G |
Number of Ports | 43953 |
