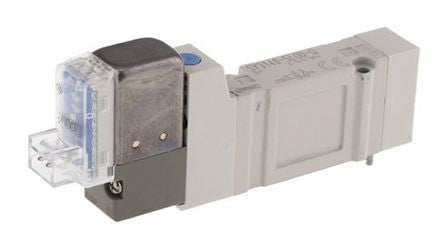

SMC 5/2 Pneumatic Control Valve Solenoid/Pilot M5 x 0.8 SY3000 Series [SY3120-5LOZ-M5-Q]; 907-6564
by SMC
0₫
Mã kho: 9076564
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | SY3000 |
| Mounting Style | Plug In |
| Function | 43953 |
| Connection Port Thread | M5 x 0.8 |
| Actuation Type | Solenoid/Pilot |
| Body Material | Die Cast Zinc |
| Solenoid Voltage | 24V dc |
| Solenoid Power Consumption | 0.35W |
| Minimum Operating Pressure | 0.15 |
| Minimum Operating Temperature | -10 |
| Maximum Operating Temperature | +50°C |
| Number of Ports | 5 |
| Thread Standard | Metric |
| Maximum Operating Pressure | 0.7 Mpa |
| Number of Positions | 2 |
| Configuration | 2-Position Single |
| Special Features | A built-in strainer in the pilot valve prevents trouble caused by foreign matter, By using H-NBR seal material for the main valve and seals Ozone resistance has been improved side top and bottom port/pipe directions are available to allow flexible installation, The SY is available in body ported or base mounted styles and can be used individually or manifold mounted |
