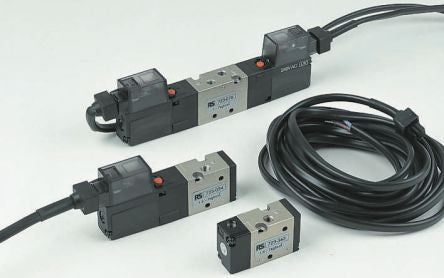

SMC 5/2 Pneumatic Control Valve Pilot/Pilot G 1/8 VZ5000 Series [EVZ5123-5MOZ-01F]; 238-4259
by SMC
0₫
Mã kho: 2384259
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Manufacturer Series | VZ5000 |
Mounting Style | Stand-Alone |
Function | 43953 |
Connection Port Thread | G 1/8 |
Actuation Type | Pilot/Pilot |
Solenoid Fitted | Yes |
Body Material | Die Cast Aluminium |
Maximum Flow Rate | 588NL/min |
Solenoid Voltage | 24V dc |
Solenoid Power Consumption | 2.1W |
Minimum Operating Pressure | 0.15MPa |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +50°C |
Thread Standard | G |
Maximum Operating Pressure | 0.7 MPa |
Number of Ports | 43953 |
Thread Size | 1/8in |
