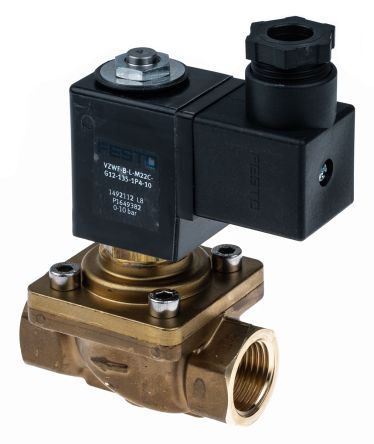

Festo 2/2 Pneumatic Solenoid Valve Solenoid/Pilot G 1/2 VZWF Series [VZWF-B-L-M22C-G12-135-1P4-10]; 121-5801
by Festo
0₫
Mã kho: 1215801
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | VZWF |
| Mounting Style | Inline |
| Function | 43863 |
| Connection Port Thread | G 1/2 |
| Actuation Type | Solenoid/Pilot |
| Solenoid Fitted | Yes |
| Body Material | Brass |
| Solenoid Voltage | 24V dc |
| Solenoid Power Consumption | 11W |
| Minimum Operating Pressure | 0bar |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +35°C |
| Special Features | Forced Lifting of the Valve Diaphragm |
| Number of Ports | 2 |
| Thread Size | 1/2in |
| Thread Standard | BSPP |
| Number of Positions | 2 |
| Maximum Operating Pressure | 10 bar |
