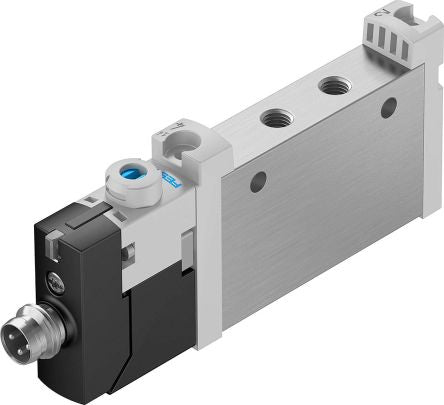

Festo 5/2 Pneumatic Solenoid Valve Solenoid Metric M5 VUVG Series [VUVG-L10-M52-MT-M5-1R8L]; 181-6420
by Festo
0₫
Mã kho: 1816420
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | VUVG |
| Mounting Style | Inline |
| Function | 43953 |
| Connection Port Thread | Metric M5 |
| Actuation Type | Solenoid |
| Solenoid Fitted | Yes |
| Body Material | Aluminium Alloy |
| Maximum Flow Rate | 190L/min |
| Solenoid Voltage | 24V dc |
| Solenoid Power Consumption | 1W |
| Minimum Operating Pressure | 3bar |
| Minimum Operating Temperature | -5°C |
| Maximum Operating Temperature | +60°C |
| Number of Positions | 2 |
| Number of Ports | 5 |
| Thread Standard | Metric |
| Maximum Operating Pressure | 8 bar |
