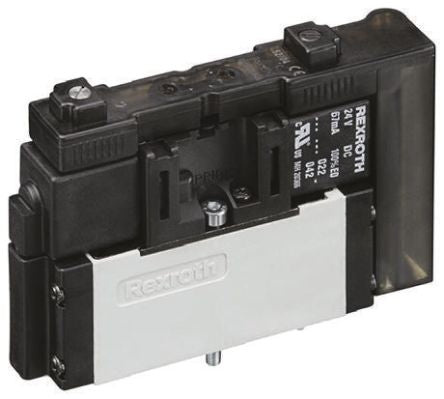

Aventics 5/3 Pneumatic Control Valve Pilot/Pilot CD01-PA Series [5763820220]; 703-7018
by Aventics
0₫
Mã kho: 7037018
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | CD01-PA |
| Mounting Style | Manifold |
| Function | 43954 |
| Actuation Type | Pilot/Pilot |
| Solenoid Fitted | Yes |
| Body Material | Polyamide |
| Maximum Flow Rate | 650L/min |
| Solenoid Voltage | 12, 24V dc |
| Solenoid Power Consumption | 2.06W |
| Minimum Operating Pressure | 3bar |
| Minimum Operating Temperature | -15°C |
| Maximum Operating Temperature | +50°C |
| Maximum Operating Pressure | 10 bar |
| Number of Ports | 43954 |
