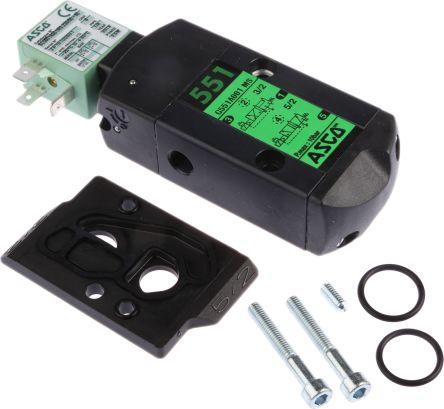

Asco 3/2, 5/2 Pneumatic Control Valve Pilot/Spring G 1/4 551 Series [SCG551A001MS 230V CA]; 330-2999
by Asco
0₫
Mã kho: 3302999
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | 551 |
| Mounting Style | NAMUR |
| Function | 3/2, 5/2 |
| Connection Port Thread | G 1/4 |
| Actuation Type | Pilot/Spring |
| Solenoid Fitted | Yes |
| Body Material | Aluminium |
| Maximum Flow Rate | 10L/min |
| Solenoid Voltage | 230V ac |
| Solenoid Power Consumption | 3.5 (Hold) VA, 6 (Inrush) VA |
| Minimum Operating Pressure | 2bar |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +60°C |
| Maximum Operating Pressure | 10bar |
| Thread Standard | G |
| Thread Size | 1/4in |
