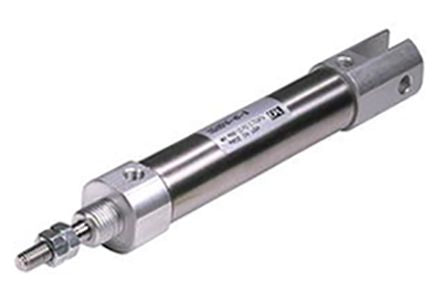

SMC Pneumatic Roundline Cylinder 10mm Bore, 60mm Stroke, CJ2 Series, Double Acting [CJ2D10-60Z]; 849-7471
by SMC
0₫
Mã kho: 8497471
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | CJ2 |
| Action | Double |
| Bore | 10mm |
| Stroke | 60mm |
| Maximum Operating Pressure | 0.7 MPa |
| Cushioning Type | Rubber Bumper |
| Dimensions | 153 x 12 x 12mm |
| Weight | 59g |
| Height | 12mm |
| Maximum Operating Temperature | +70°C |
| Diameter | 14mm |
| Minimum Operating Temperature | -10°C |
| Stroke Interval Weight | 4 g |
| Length | 153mm |
