![Festo DSNU-20-100-P-A 1214743](http://nguyenxuong.com/cdn/shop/products/F1214743-01_444x253.jpg?v=1594250319)

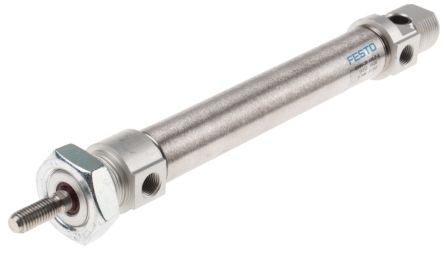

Festo Pneumatic Cylinder 20mm Bore, 100mm Stroke, DSNU Series, Double Acting [DSNU-20-100-P-A]; 121-4743
by Festo
0₫
Mã kho: 1214743
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Manufacturer Series | DSNU |
Action | Double |
Bore | 20mm |
Stroke | 100mm |
Maximum Operating Pressure | 10 bar |
Pneumatic Connection | G 1/8 |
Piston Rod Thread Gender | Male |
Cushioning Type | Elastomer |
Dimensions | 27 x 232mm |
Weight | 258.8g |
Maximum Operating Temperature | +80°C |
Diameter | 27mm |
Minimum Operating Temperature | -20°C |
Length | 232mm |
