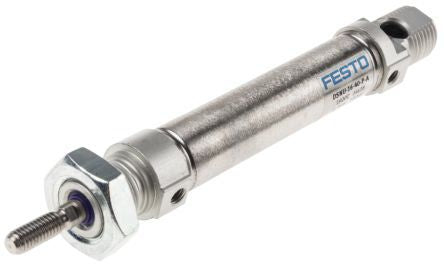

Festo Pneumatic Cylinder 16mm Bore, 35mm Stroke, DSNU Series, Double Acting [DSNU-16-35-PPS-A]; 136-6623
by Festo
0₫
Mã kho: 1366623
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | DSNU |
| Action | Double |
| Bore | 16mm |
| Stroke | 35mm |
| Pneumatic Connection | M5 |
| Maximum Operating Pressure | 10 bar |
| Piston Rod Thread Gender | Male |
| Cushioning Type | Air |
| Dimensions | 20 x 146mm |
| Weight | 106g |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -20°C |
| Diameter | 20mm |
| Length | 146mm |
