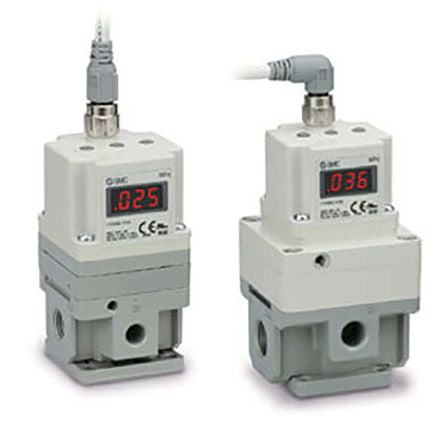

ITV1000/2000/3000, Electro-Pneumatic Reg [ITV3050-33F4N3]; 196-1204
by SMC
0₫
Mã kho: 1961204
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Port Connection | G 1/2 |
Minimum Outlet Pressure | 0.005MPa |
Maximum Outlet Pressure | 0.9MPa |
Maximum Input Pressure | 1MPa |
Manufacturer Series | ITV3000 |
Port Connection Thread Size | 1/2 in |
Maximum Flow Rate | 4000L/min |
Port Connection Thread Standard | G |
Minimum Operating Temperature | 0°C |
Maximum Operating Temperature | +50°C |
Overall Height | 125mm |
Overall Length | 66mm |
Overall Dimensions | 66 x 66 x 125mm |
Overall Width | 66mm |
