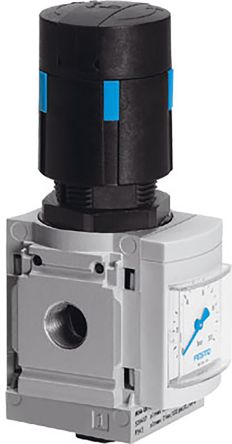

Festo Pneumatic Regulator 1000 to 7500L/min G 1/8, 0.8 to 20bar [MS4-LR-1/8-D6-AS]; 125-9947
by Festo
0₫
Mã kho: 1259947
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Port Connection | G 1/8 |
| Minimum Outlet Pressure | 0.8bar |
| Maximum Outlet Pressure | 20bar |
| Maximum Input Pressure | 7bar |
| Port Connection Thread Size | 1/8 in |
| Maximum Flow Rate | 7500L/min |
| Typical Flow Rate | 1000 to 7500L/min |
| Port Connection Thread Standard | G |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +60°C |
| Overall Length | 40mm |
| Overall Height | 117.5mm |
| Overall Dimensions | 40 x 57 x 117.5mm |
| Overall Width | 57mm |
