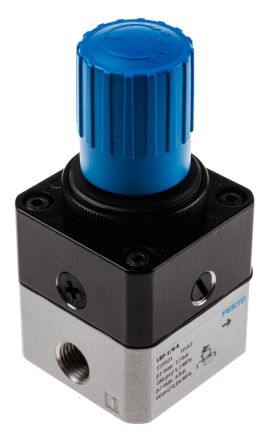

Festo Pneumatic Regulator 2000L/min G 1/4, 0.05 → 4bar [LRP-1/4-4]; 121-5642
by Festo
0₫
Mã kho: 1215642
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Port Connection | G 1/4 |
Minimum Outlet Pressure | 0.05bar |
Maximum Outlet Pressure | 4bar |
Maximum Input Pressure | 12bar |
Pressure Gauge Port Size | G 1/4 |
Port Connection Thread Size | 1/4 in |
Pressure Gauge Port Thread Size | 1/4 in |
Maximum Flow Rate | 2300L/min |
Typical Flow Rate | 2000L/min |
Port Connection Thread Standard | G |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +60°C |
Overall Height | 111mm |
Overall Length | 50mm |
Overall Width | 50mm |
Pressure Gauge Port Thread Standard | G |
Overall Dimensions | 50 x 50 x 111mm |
