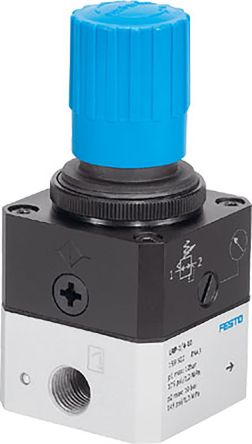

Festo Pneumatic Regulator 800 to 2300L/min G 1/4, 1 to 12bar [LRP-1/4-0,7]; 125-9902
by Festo
0₫
Mã kho: 1259902
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Port Connection | G 1/4 |
Minimum Outlet Pressure | 1bar |
Maximum Outlet Pressure | 12bar |
Maximum Input Pressure | 7bar |
Port Connection Thread Size | 1/4 in |
Maximum Flow Rate | 2300L/min |
Typical Flow Rate | 800 to 2300L/min |
Port Connection Thread Standard | G |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +60°C |
Overall Length | 50mm |
Overall Width | 50mm |
Overall Dimensions | 50 x 50 x 111mm |
Overall Height | 111mm |
