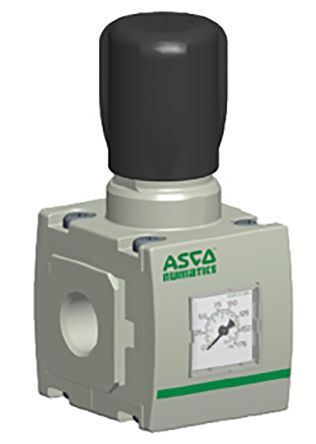

Asco Pneumatic Regulator 245 SCFM, 7000 L/min G 1/2, 0.5 → 10bar [G652AR004GA00H0]; 125-3545
by Asco
0₫
Mã kho: 1253545
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Port Connection | G 1/2 |
| Minimum Outlet Pressure | 0.5bar |
| Maximum Outlet Pressure | 10bar |
| Maximum Input Pressure | 16bar |
| Port Connection Thread Size | 1/2 in |
| Typical Flow Rate | 245 SCFM, 7000 L/min |
| Integral Check Valve | Without Check Valve |
| Port Connection Thread Standard | G |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +50°C |
| Overall Length | 66mm |
| Overall Height | 151mm |
| Overall Dimensions | 66 x 55 x 151mm |
| Proof Pressure | 10bar |
| Overall Width | 55mm |
